ARA-D 13% AIRFOIL (arad13-il)

ARA-D 13% AIRFOIL - Aeronautical Research Association/Bocci-Dowty Rotol ARA-D 13% thick propeller airfoil


Airfoil arad13-il
Details Dat file Parser
(arad13-il) ARA-D 13% AIRFOIL
Aeronautical Research Association/Bocci-Dowty Rotol ARA-D 13% thick propeller airfoil
Max thickness 13% at 25% chord.
Max camber 3.6% at 30% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format

 ARA-D 13% AIRFOIL
26.        26.

 0.00000   0.00000
  .00300    .016690
  .01000    .030501
  .02000    .042765
  .04000    .058860
  .07000    .074042
  .10000    .083817
  .15000    .093428
  .20000    .098375
  .25000    .100531
  .30000    .100753
  .35000    .099332
  .40000    .096418
  .45000    .092257
  .50000    .087058
  .55000    .080985
  .60000    .074199
  .65000    .066848
  .70000    .059069
  .75000    .050964
  .80000    .042648
  .85000    .034252
  .90000    .025824
  .95000    .017412
  .97500    .013217
 1.00000    .009000

 0.00000   0.00000
  .00300   -.008889
  .01000   -.015423
  .02000   -.020588
  .04000   -.026311
  .07000   -.030339
  .10000   -.031808
  .15000   -.031723
  .20000   -.030642
  .25000   -.029469
  .30000   -.028526
  .35000   -.027687
  .40000   -.026803
  .45000   -.025845
  .50000   -.024808
  .55000   -.023686
  .60000   -.022484
  .65000   -.021206
  .70000   -.019847
  .75000   -.018382
  .80000   -.016761
  .85000   -.014930
  .90000   -.012895
  .95000   -.010755
  .97500   -.009791
 1.00000   -.009000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

MH 81 13%PreviewDetails
MH 82 13.31%PreviewDetails
EPPLER 338 AIRFOILPreviewDetails
EPPLER 329 AIRFOILPreviewDetails
LA2573APreviewDetails

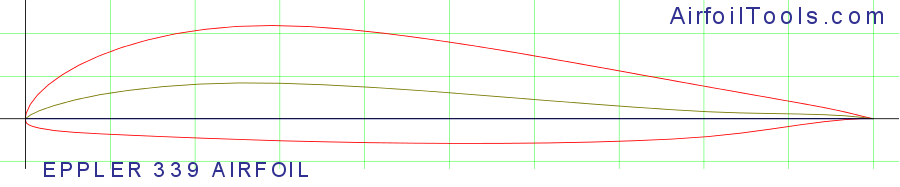

EPPLER 339 AIRFOILPreviewDetails
EPPLER 336 AIRFOILPreviewDetails
EPPLER 637 AIRFOILPreviewDetails
MH 83 13.29%PreviewDetails
MH 84 13.69%PreviewDetails

Polars for ARA-D 13% AIRFOIL (arad13-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   arad13-il50,000925.7 at α=5.25°Mach=0 Ncrit=9Xfoil predictionDetails
   arad13-il50,000531.8 at α=6.25°Mach=0 Ncrit=5Xfoil predictionDetails
   arad13-il100,000941.8 at α=5.25°Mach=0 Ncrit=9Xfoil predictionDetails
   arad13-il100,000544.5 at α=6.5°Mach=0 Ncrit=5Xfoil predictionDetails
   arad13-il200,000956.1 at α=6.5°Mach=0 Ncrit=9Xfoil predictionDetails
   arad13-il200,000558.4 at α=7.5°Mach=0 Ncrit=5Xfoil predictionDetails
   arad13-il500,000978.6 at α=7.25°Mach=0 Ncrit=9Xfoil predictionDetails
   arad13-il500,000579.4 at α=8.5°Mach=0 Ncrit=5Xfoil predictionDetails
   arad13-il1,000,000997.9 at α=8.75°Mach=0 Ncrit=9Xfoil predictionDetails
   arad13-il1,000,000596.4 at α=9°Mach=0 Ncrit=5Xfoil predictionDetails
