NASA/AMES A-03 AIRFOIL (ames03-il)

NASA/AMES A-03 AIRFOIL - NASA/AMES/Kennelly A-03 transonic rotorcraft airfoil


Airfoil ames03-il
Details Dat file Parser
(ames03-il) NASA/AMES A-03 AIRFOIL
NASA/AMES/Kennelly A-03 transonic rotorcraft airfoil
Max thickness 10% at 37.5% chord.
Max camber 1.2% at 17.5% chord
Source UIUC Airfoil Coordinates Database
Source dat file
The dat file is in Lednicer format
 NASA/AMES A-03 AIRFOIL
50.       50.

 0.0000    0.000000
 0.0005    0.003287
 0.0010    0.004794
 0.0020    0.006863
 0.0050    0.011046
 0.0100    0.015938
 0.0200    0.023162
 0.0300    0.028740
 0.0400    0.033303
 0.0500    0.037162
 0.0750    0.044687
 0.1000    0.050007
 0.1250    0.053639
 0.1500    0.056049
 0.1750    0.057543
 0.2000    0.058505
 0.2250    0.059281
 0.2500    0.059958
 0.2750    0.060532
 0.3000    0.060985
 0.3250    0.061305
 0.3500    0.061482
 0.3750    0.061515
 0.4000    0.061401
 0.4250    0.061140
 0.4500    0.060731
 0.4750    0.060179
 0.5000    0.059481
 0.5250    0.058630
 0.5500    0.057524
 0.5750    0.056055
 0.6000    0.054148
 0.6250    0.051803
 0.6500    0.049020
 0.6750    0.045800
 0.7000    0.042141
 0.7250    0.038096
 0.7500    0.033740
 0.7750    0.029138
 0.8000    0.024363
 0.8250    0.019505
 0.8500    0.014634
 0.8750    0.009901
 0.9000    0.005647
 0.9250    0.002243
 0.9500    0.000079
 0.9700   -0.000264
 0.9800    0.000088
 0.9900    0.000829
 1.0000    0.002000

 0.0000    0.000000
 0.0005   -0.002803
 0.0010   -0.003934
 0.0020   -0.005515
 0.0050   -0.008444
 0.0100   -0.011435
 0.0200   -0.015259
 0.0300   -0.017968
 0.0400   -0.020112
 0.0500   -0.021903
 0.0750   -0.025428
 0.1000   -0.028126
 0.1250   -0.030247
 0.1500   -0.031973
 0.1750   -0.033397
 0.2000   -0.034589
 0.2250   -0.035572
 0.2500   -0.036395
 0.2750   -0.037073
 0.3000   -0.037625
 0.3250   -0.038046
 0.3500   -0.038334
 0.3750   -0.038485
 0.4000   -0.038498
 0.4250   -0.038371
 0.4500   -0.038102
 0.4750   -0.037691
 0.5000   -0.037138
 0.5250   -0.036441
 0.5500   -0.035602
 0.5750   -0.034621
 0.6000   -0.033497
 0.6250   -0.032233
 0.6500   -0.030830
 0.6750   -0.029291
 0.7000   -0.027619
 0.7250   -0.025818
 0.7500   -0.023895
 0.7750   -0.021858
 0.8000   -0.019718
 0.8250   -0.017486
 0.8500   -0.015178
 0.8750   -0.012876
 0.9000   -0.010610
 0.9250   -0.008434
 0.9500   -0.006450
 0.9700   -0.005109
 0.9800   -0.004573
 0.9900   -0.004188
 1.0000   -0.004000
No parser warnings Send to airfoil plotter
Add to comparison
Lednicer format dat file
Selig format dat file

Similar airfoils

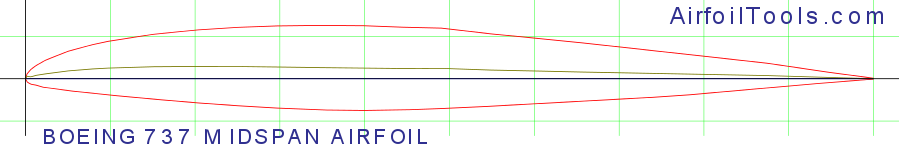

BOEING 737 MIDSPAN AIRFOILPreviewDetails
NASA/AMES A-01 AIRFOILPreviewDetails
SIKORSKY SC2110 AIRFOILPreviewDetails
NASA/LANGLEY RC-10(N)1 AIRFOILPreviewDetails
LOCKHEED-GEORGIA SUPERCRITICALPreviewDetails
GIII BL45 AIRFOILPreviewDetails
BOEING 737 OUTBOARD AIRFOILPreviewDetails
SIKORSKY SSC-A09 AIRFOILPreviewDetails
BOEING-VERTOL VR-13 AIRFOILPreviewDetails
KC-135 BL200.76 AIRFOILPreviewDetails

Polars for NASA/AMES A-03 AIRFOIL (ames03-il)

PlotAirfoilReynolds #NcritMax Cl/CdDescriptionSource
   ames03-il50,000927.5 at α=4.25°Mach=0 Ncrit=9Xfoil predictionDetails
   ames03-il50,000527.6 at α=6.75°Mach=0 Ncrit=5Xfoil predictionDetails
   ames03-il100,000934.4 at α=6°Mach=0 Ncrit=9Xfoil predictionDetails
   ames03-il100,000539.6 at α=8.75°Mach=0 Ncrit=5Xfoil predictionDetails
   ames03-il200,000950.9 at α=8.75°Mach=0 Ncrit=9Xfoil predictionDetails
   ames03-il200,000553.3 at α=8.25°Mach=0 Ncrit=5Xfoil predictionDetails
   ames03-il500,000972.7 at α=8°Mach=0 Ncrit=9Xfoil predictionDetails
   ames03-il500,000570.9 at α=7.5°Mach=0 Ncrit=5Xfoil predictionDetails
   ames03-il1,000,000987.8 at α=7.5°Mach=0 Ncrit=9Xfoil predictionDetails
   ames03-il1,000,000583.4 at α=7.25°Mach=0 Ncrit=5Xfoil predictionDetails
